Your Trusted Partner for Advanced Testing Solutions

Key Advantages of ILaS®:

• Bidirectional communication between LEDs, sensors, and actuators
• Expanded use cases in automotive, smart buildings, and industrial automation
• Ultra-fast response time for real-time lighting and sensor applications
• Simplified wiring compared to traditional lighting and sensor systems

ILaS® (ISELED® Light & Sensor Network) is the next evolution of ISELED, extending its capabilities beyond lighting to a full sensor and actuator network. With ILaS, LEDs, sensors, and other components can communicate efficiently within a single, high-speed digital ecosystem.

Check out the current highlights

ISELED^®uino

Application & Development Board to control ISELED® with specially licensed microcontroller (MCU)

ISELEDs^® are the first industrial grade smart addressable RGB LEDs, used in automotive, avionics and rough environments. For full documentation please refer to Iseled.com

ISELED® advantages are

• up to 4079 LEDs can be controlled with one data line
• operating temperature range from -40 to +85°C
• differential bus communication for longer distances and less EMI
• 4 dimming levels, to achieve color stability also in very dim lighting mode
• calibrated to D65 color space resulting in a beautiful white and always the same color temperature even if LEDs must be replaced or added in years to come

4700 High Precision Meter

The Vitrek 4700 Precision High Voltage combines the highest level of measurement accuracy with easiness to use, it provides instant, direct, high voltage measurements in a highly portable, compact and rugged bench top housing.

The 4700’s large, high resolution, color, touch graphic display simultaneously shows the AC and DC content of the voltage being measured and can plot readings from a few seconds to several days.

Vitrek’s 4700 precisely measures voltages directly up to 10KVwith no external probes and with the SmartProbe™ increases to 35KV, 70KV, 100KV and 150KV.

To ensure the best possible measurement accuracy, the 4700 makes over 40,000 reading per second which are then filtered, sub-sampled, scaled and offset corrected – all with “error free” mathematic methodology. In addition the 4700 provides VLF AC readings down to 0.01 Hz, as well as, peak to peak, crest factor and fundamental frequency measurement. Available G series probes offer extremely high input impedance options for electrostatic voltmeter applications.

Multi-CE5 Compact EMC test unit

The Multi-CE5 is a compact cost-effective EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark. The device has a modular structure and can be equipped with an internal 1-phase coupling network, a burst generator, a surge generator and a power fail generator.

The Multi-CE5 has a compact design, is simple in handling and a precise reproducibility of test impulses. It features a microprocessor-controlled user interface and a 7″ touch screen unit for ease of use. The microprocessor allows the user to execute either standard test routines or a “user defined” test sequence based on IEC 61000-4-04, IEC 61000-4-05, IEC 61000-4-08, IEC 61000-4-09, IEC 61000-4-11, IEC 60060-2 and IEC 61000-4-29.

CIT-100

The CIT-100 is a complete test system for conducted RF-immunity testing and BCI-testing acc. to IEC/EN 61000-4-6, ISO 11452-4, MIL-STD 461, CS114 and similar standards.
The system consists of a built-in:

• Signal generator, 4kHz – 1.2 GHz
• RF-Power-Amplifier. max 4kHz – 400 MHz, 25 / 75 W
• 3-Channel RF-Power-Meter to measure the test level as well as forward & reverse power, 4kHz – 1.2 GHz
• Directional Coupler
• Comfortable control software

As a „stand-alone“ test system the CIT-100 is convincing by its easy and comfortable handling and the excellent cost-performance ratio.
We also offer the full range of coupling/decoupling networks (CDN‘s), EM-coupling clamp, BCI- and current clamps.

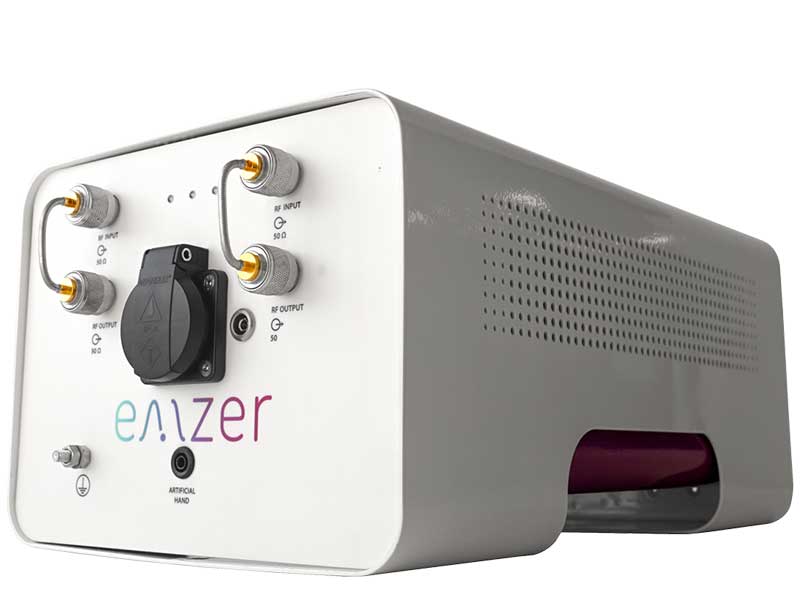

Dual FFT-based Modal EMI Receiver

EMSCOPE is a new double EMI-Test Receiver according to CISPR-16-1-1, which can be optionally integrated with a 16-A LISN, that fully embodies the measurement of common and differential mode conducted emissions. It is the fastest receiver in the market: Line and Neutral measurements with the 3 detectors simultaneously (6 simultaneous measurements) and with Resolution Bandwidth Filters of 200 Hz, 9 kHz and 120 kHz (CISPR), and 1 kHz and 10 kHz (MIL).

Obtaining instantaneous measurements of common and differential mode emissions allows R&D engineers to find the dominant mode at each frequency band and to design and implement the optimal power line filter (PLF) for a given device under test (DUT).

EMSCOPE includes innovative solutions and features, speeds up your time-to-market at a reduced cost, and offers added value to its users when compared to any other commercial EMI receiver.
